6th March 2024
USED EX VANE CHASSIS DYNAMOMETER ( INCLUDING VEHICLE FAN)
(CONVERTED TO MDD L SERIES SYSTEM)
- Ex VANE 450 Chassis Bed - (Right Hand-In Ground Installation)
- Power Rating 800Hp / 600Kw – Roller Torque Rating – 1180.8 Ft Lbs / 1600Nm
- Roller Track Width (600mm to 1950mm) NOTE NARROW ROLLER TRACK
- Larger 266mm Diameter Rollers
- Traction Rails / Slots (Between Rollers)
- Tie Down Points x 4; Repositionable Eye Bolts x 4; Strap Tie Bar; Strap Lift Bar
- Vehicle Restraint Kit - 2 x 2500Kg Vehicle Straps + 2 x Vehicle Strap Ratchets
- Heavy Duty Rubber Wheel Chocks
- Workstation / Cabinet with Twin Boom Arms, Monitor Mount, Twin 22" LCD Monitors
- Computer Control PC Module (Win 10 OS); Mainline L Series Dyno Software
- Dynamometer Control / DAQ Module (RWD/FWD Vehicles)
- Wireless Trackball Keyboard (Dyno Hand Controller)
- Automatic Weather Station (Live Environmental Power Correction)
- Automatic Vehicle Cooling Fan ON/OFF control
- Retarder Temperature Sensor (Retarder Temp Logging & Over Temp Protection)
- High Speed, Wide Band AFR Meter Kit (0.68 to 2.04 Lambda Range)
- Extended Exhaust Tube, Oxygen Sensor, & HD rubber retaining strap
- Engine Tacho - Derived RPM (Engine RPM derived from Wheel Speed)
- Engine RPM Module (Inductive & Voltage Probes + Driveline Slip Analysis Channels)
- MAP/Boost Module x 2 (7 BAR Sensors)
- 1 x EGT Channel (Includes Thermocouple
- 2 x 0-30 Volt Definable Analog Inputs
- Injector/Component Duty Cycle Module (IDC, IPW, Frequency, & Max Available IPW)
- Engine Oil Temperature Dipstick Probe
- Engine Inlet Air Temperature Probe
- MATHS Channels x 2 (Operator Configurable Calculation Channels)
- MDD Workshop Sign (Corflute) + MDD Workshop Vinyl Rope Banner
- Small Vehicle Cooling Fan Included (5.5Kw – 15-15 Blower)
WARRANTY & TECHNICAL SUPPORT SUBSCRIPTION - Original Purchaser Only
12 Months Dyno Component Warranty (Excluding Consumables)
12 Months Unlimited Tech Support & Service Subscription via Phone, Internet, Email, Web Support
MAINS POWER REQUIREMENT – (3 Phase)
415V 3PH 32A (5 Wires L1, L2, L3, NEUTRAL, EARTH)
NOTES:
- This dynamometer is an Ex TAFE-NSW unit in good working condition.
- The chassis bed was fully refurbished by us in 2013 and has done little work since.
- A new Frenelsa retarder was fitted during the refurbishment in 2013.
- Rollers Re-knurled, zinc plated and balanced in 2013.
- A new PC and latest DAQ conversion fitted with the last 12 months.
- Software upgraded to current version.
- The chassis bed is Ex VANE 450 unit with short roller track.
- This chassis bed is also for in ground installation / use only.
- Please note that the roller track maximum width is 1950 mm and may not suit all cars.
Package Price $ 30,000.00 + Gst
7th March 2024
***SOLD***
5th March 2024

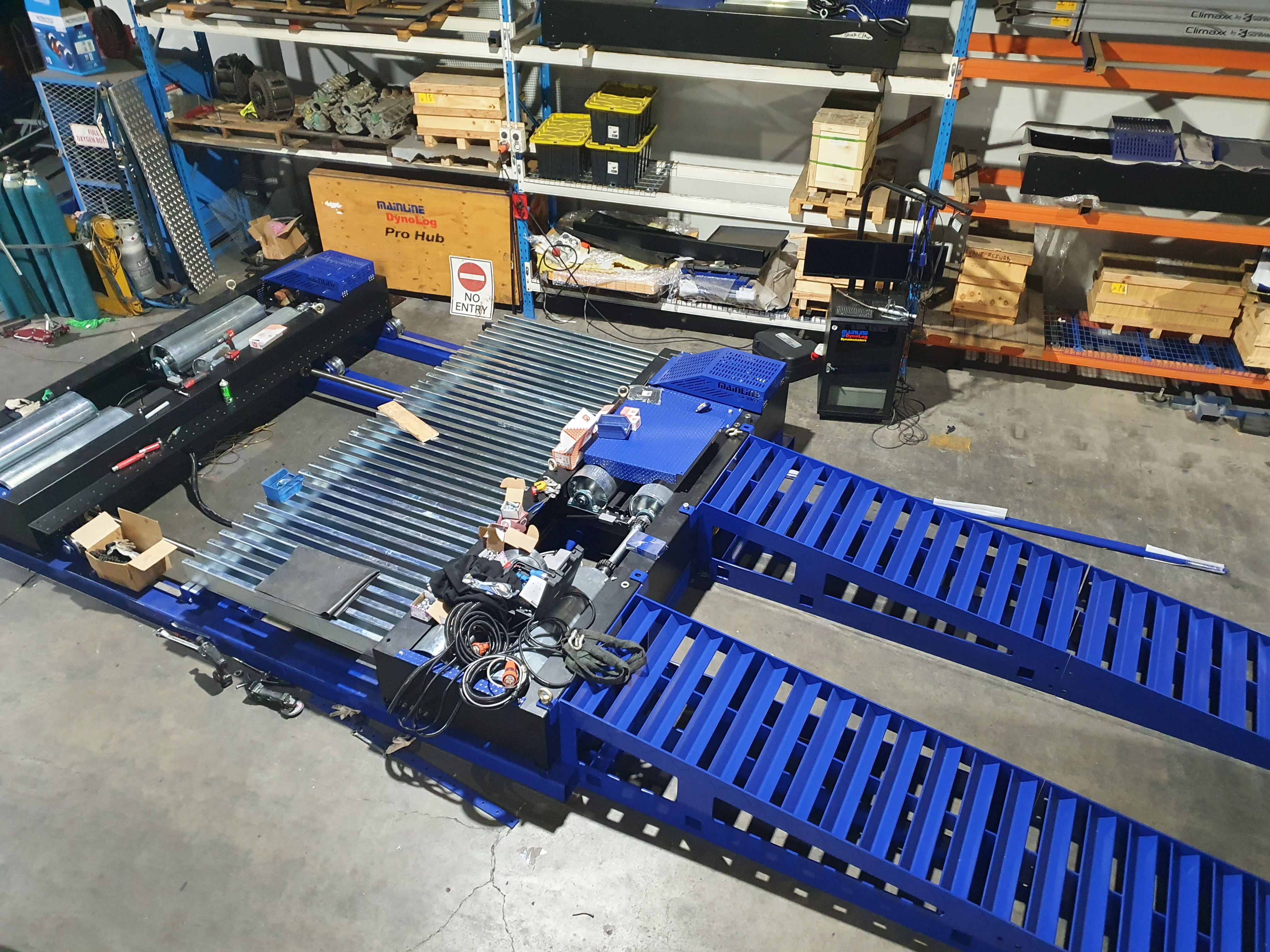

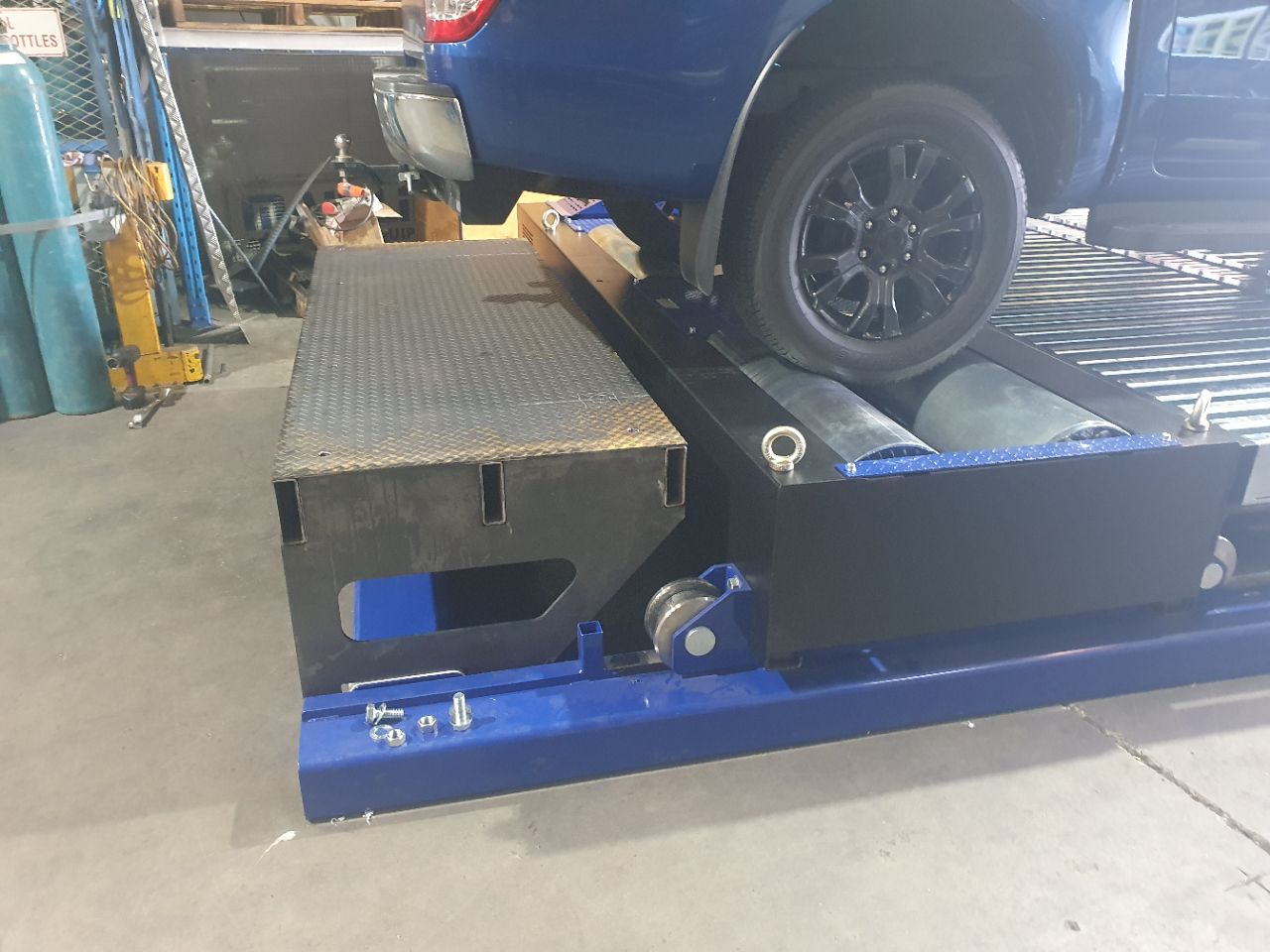

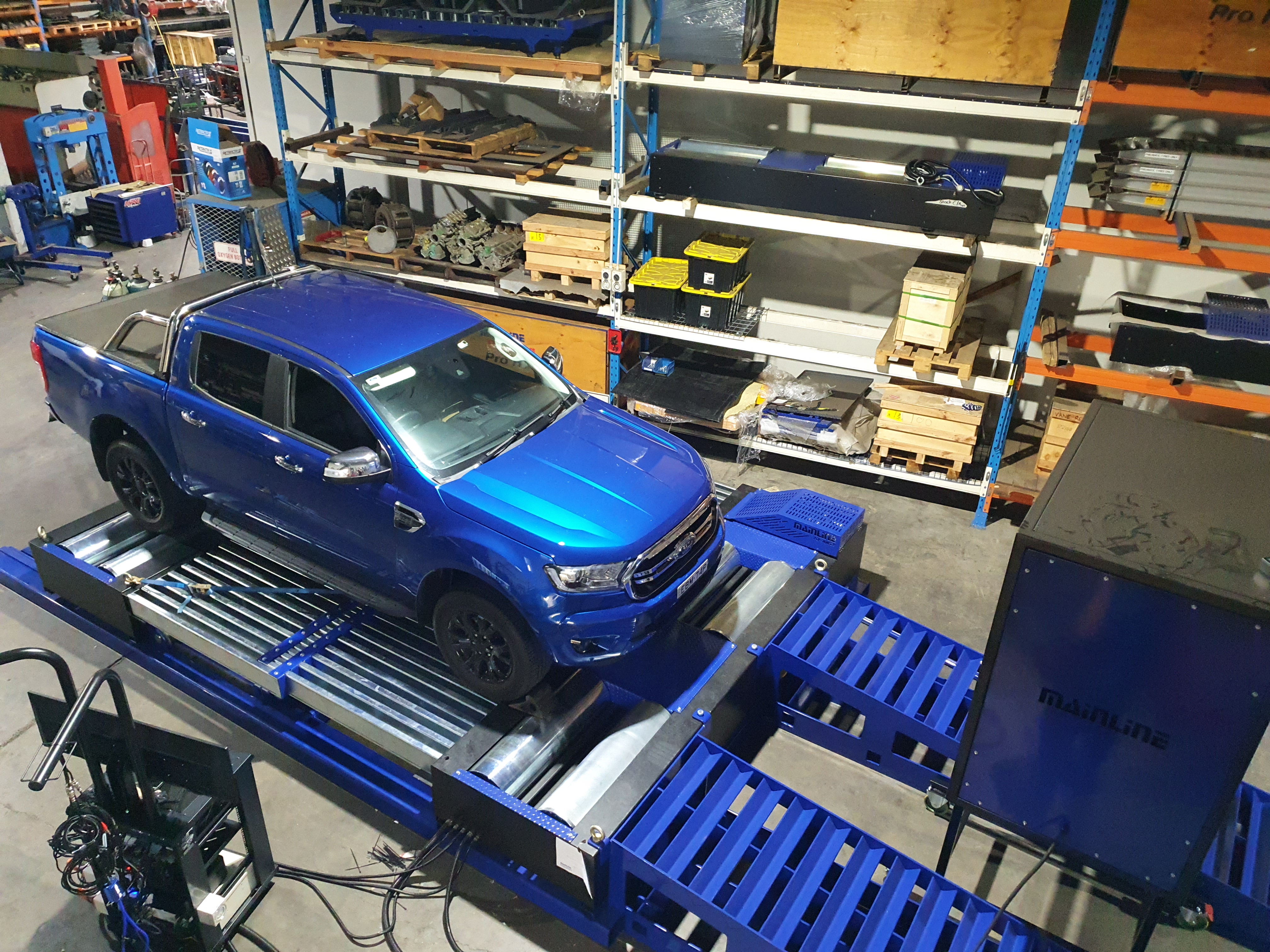

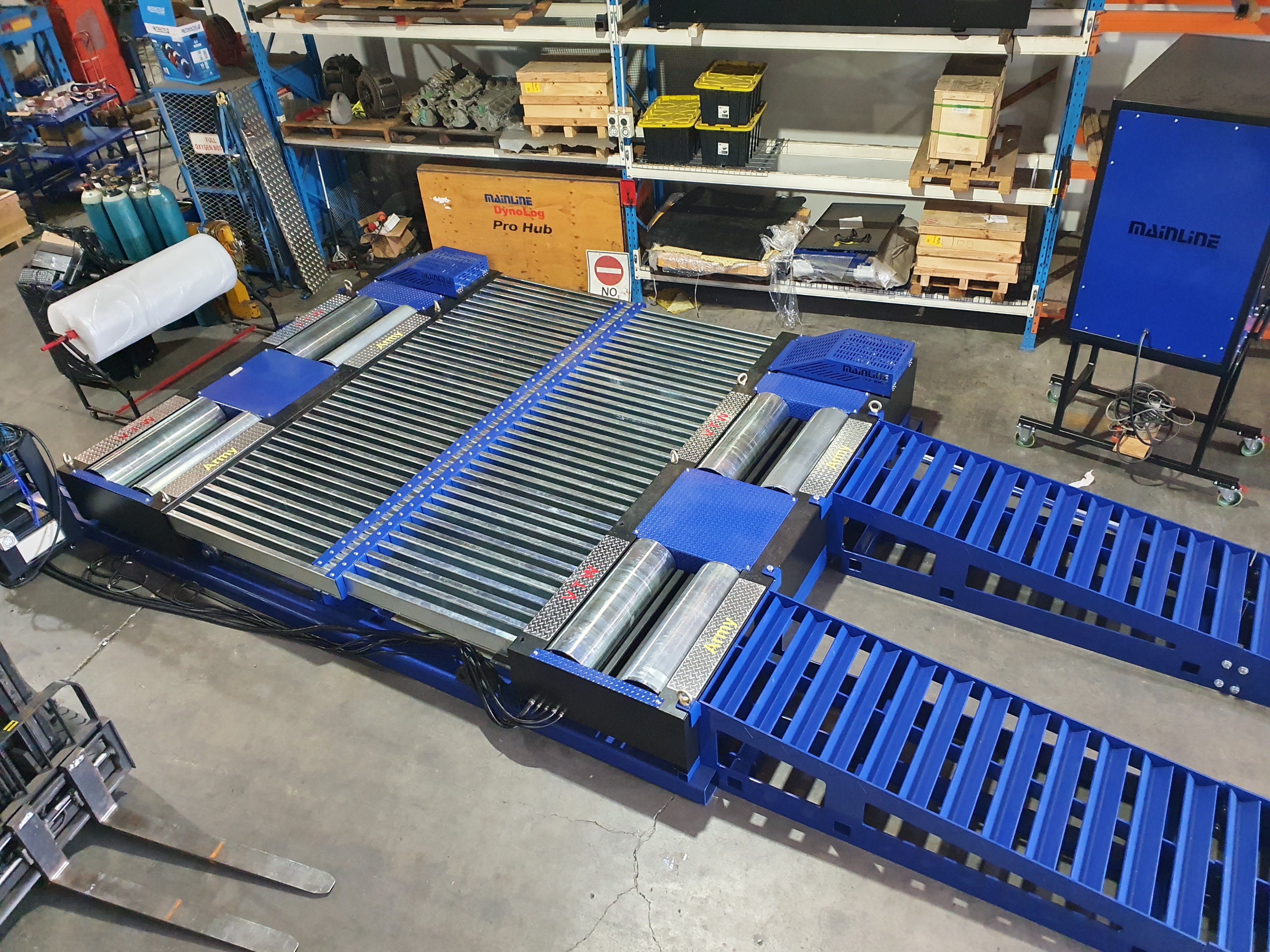

AVAILABLE SOON - 2WD600P PREMIUM CHASSIS DYNAMOMETER PACKAGE
- 2WD600P Premium Heavy Duty Chassis Bed (Right Hand-Above Ground Installation)
- Power Rating 1200Hp – 895kw / Torque Rating 1250Ftlbs -1700Nm
- Roller Track Width (400mm to 2200mm)
- External Outrigger Chassis Bed Feet (Increased operational stability)
- Heavy Duty Traction Rails / Slots (Between Rollers) (For Multi Roller Traction Hoops Use)
- Tie Down Points x 12; Repositionable Eye Bolts x 4; Strap Tie Bar; Strap Lift Bar
- Vehicle Restraint Kit - 2 x 2500Kg Vehicle Straps + 2 x Vehicle Strap Ratchets (H & C)
- 1500Kg Vehicle Straps J Hook x 2, FWD Vehicle Straps x 2, Short straps x 2, Ratchets x 4
- Heavy Duty Rubber Wheel Chocks
- Workstation / Cabinet with Twin Boom Arms, Twin Monitor Mount, Twin 24" LCD Monitors
- Computer Control PC Module (Win 10 OS 64-Bit); Mainline Premium Pro Dyno Software
- Dynamometer Control / DAQ Module (RWD/FWD Vehicles)
- Wireless Trackball Keyboard (Dyno Hand Controller)
- Automatic Vehicle Fan Control (User definable On / Off parameters) (For Optional Cooling Fan)
- Load Cell / Retarder Cooling Fan (Automatic or Manual Remote Controlled)
- Automatic Weather Station (Live Environmental Power Correction)
- Retarder Temperature Sensor (Retarder Temp Logging & Over Temp Protection)
- High Speed, Wide Band AFR Meter Kit (0.68 to 2.04 Lambda Range) (AFR Heater Switch)
- Extended Exhaust Tube, Oxygen Sensor, & HD rubber retaining strap
- Engine Tacho - Derived RPM (Engine RPM derived from Wheel Speed)
- Engine RPM Module (Inductive & Voltage Probes + Vehicle Driveline Slip Analysis Channels)
- MAP/Boost Module x 2 (7 BAR Sensors)
- 200 MATHS Channels (Operator Configurable Calculation Channels)
- MDD Workshop Sign (Aluminium), MDD Workshop Sign (Corflute), MDD Workshop Vinyl Banner
DESCRIPTION / NOTES
This package is a used/refurbished 2WD Chassis Dynamometer in excellent condition and will present as new. The chassis bed has done very little work. We are offering a new dynamometer warranty on this unit. (24 Months)
This is a Premium level unit with Premium Software included.
New cabinet / workstation will be supplied.
New vehicle straps included.
New Traction Hoops included.
New Set - 3.4 Metre Aluminium Vehicle Ramps Kit (Including Mounting Brackets)
WARRANTY / TECH SUPPORT
24-month warranty and lifetime tech support subscription are being offered with this unit.
This unit will be available on or before March 30th, 2024.
There is no vehicle cooling fan with this package, but a cooling fan may be purchased.
This unit is for the Australian domestic market only. (Australian Purchasers Only)
MAINS POWER REQUIREMENT - WIRED FOR AUSTRALIAN 3PH VOLTAGE SPECIFICATIONS
415V 3PH 50Hz 32A (5 Wires - L1, L2, L3, Neutral, Earth)
WARRANTY & TECHNICAL SUPPORT SUBSCRIPTION – (Original Purchaser Only)
24 Months Dyno Component Warranty (Excluding Consumables)
Lifetime Unlimited Tech Support & Service Subscription via Phone, Internet, Email, Web Support
Package Price - $ 45,000.00 + GST
***SOLD***
